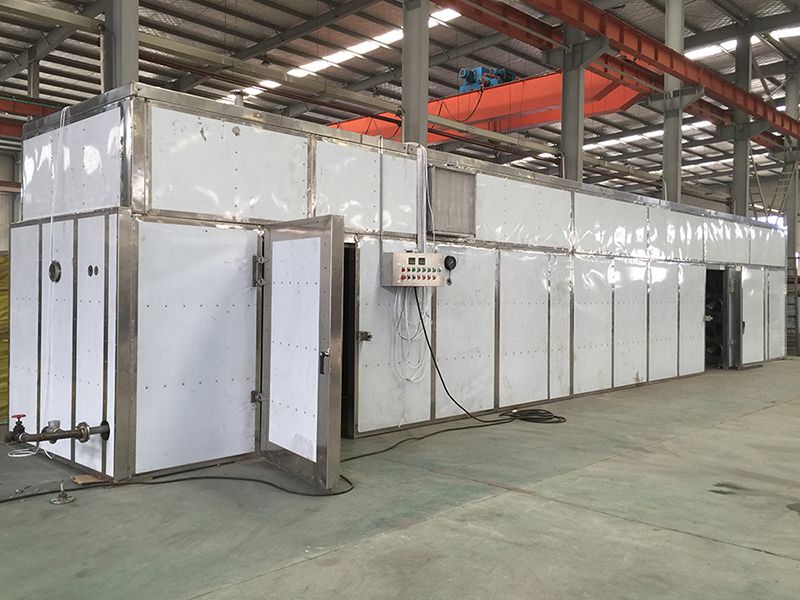

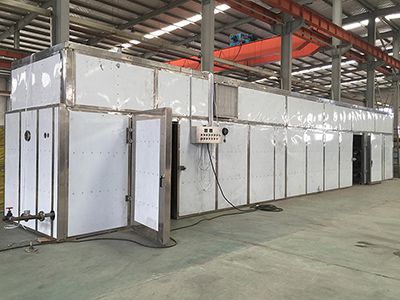

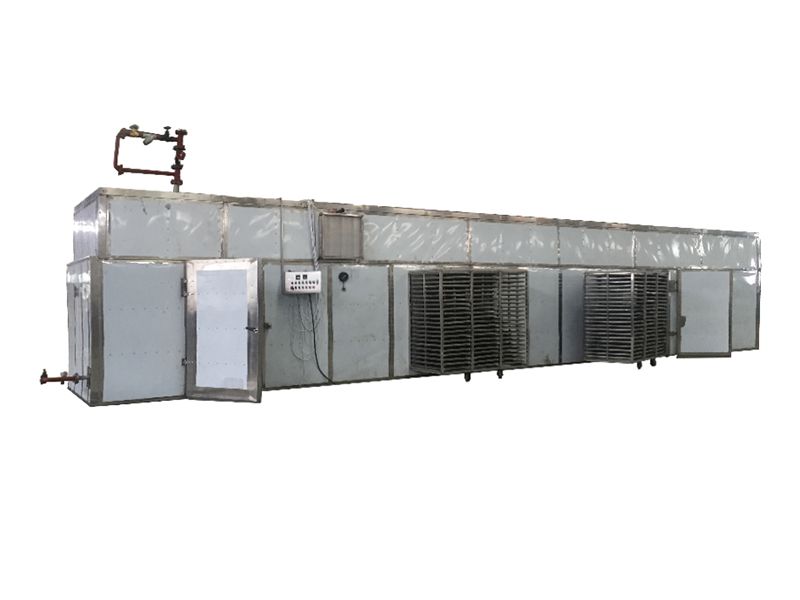

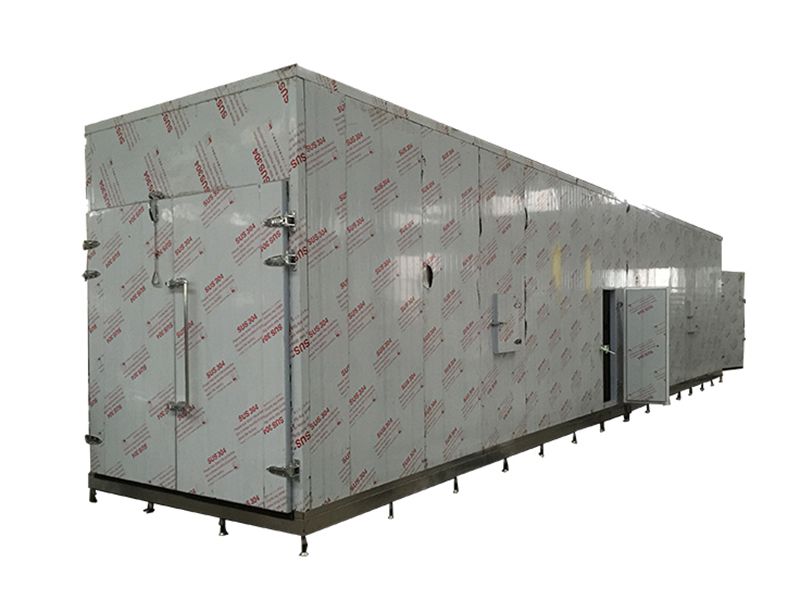

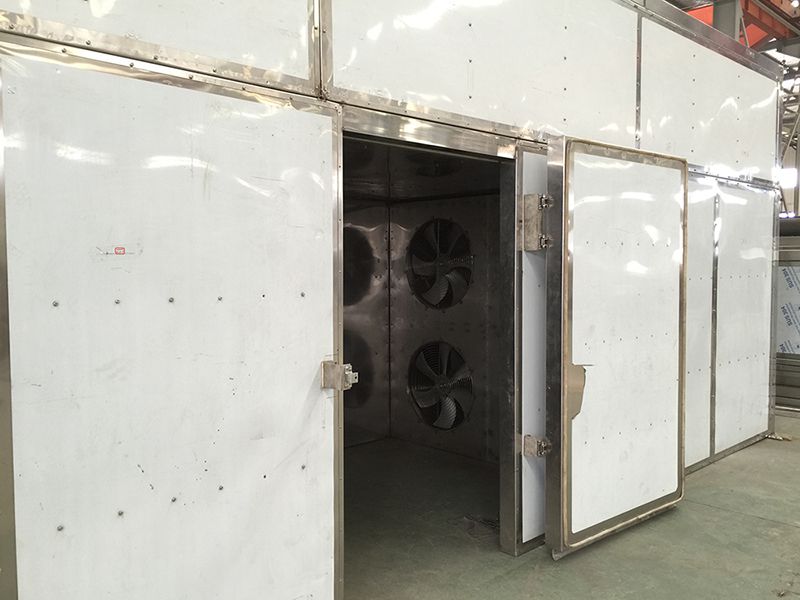

HGS Series Tunnel-type Dryer consists of a drying room, trolleys, trays, heat exchanger, and an electrical control system. It is specifically designed for drying large products requiring a long drying time and high-quality appearance.
Samples
Fresh Plum
Dried Plum
Fresh Apricot
Dried Apricot
Specifications
Model
Loading capacity (kg)
Number of carts
Number of drying tray
Tray size (mm)
Steam consumption (kg/h)
Drying temperature (℃)
Power (kW)
Dimensions (m)
HGS-2.5
2500
7
462
930×600×30
750
< 100
11.0
12.3×2.3×3.1
HGS-4.0
4000
11
726
930×600×30
1200
< 100
11.0
16.3×2.3×3.1
HGS-10
10000
28
1848
930×600×30
2500
< 100
24.2
19.2×4.5×3.1
Features
The modular insulation panels are easy to disassemble and assemble, saving transportation space and reducing investment costs.
The 100mm-thick insulation panel has excellent insulation and energy-saving capabilities. The double-sided stainless steel construction ensures compliance with food safety and hygiene requirements.

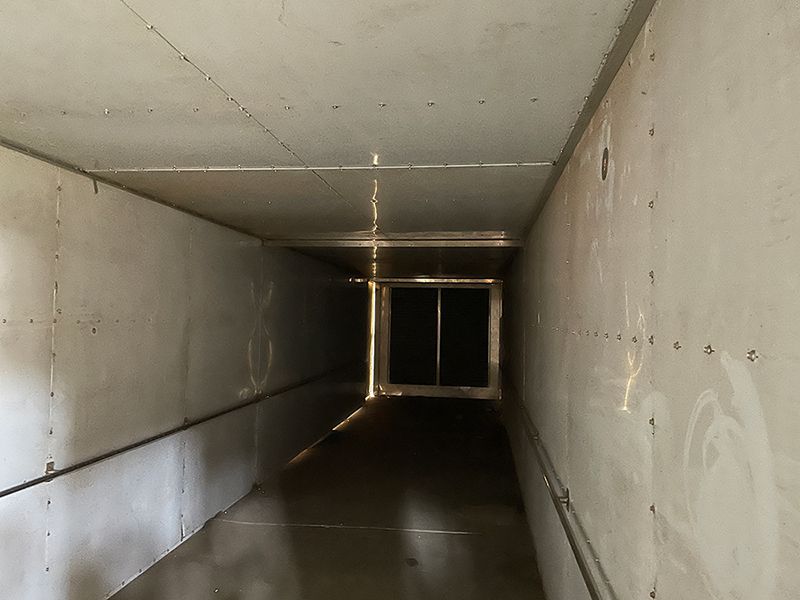

The interior of the dryer is equipped with collision protection bars on both sides to prevent damage to the walls and extend the lifespan of the drying equipment.

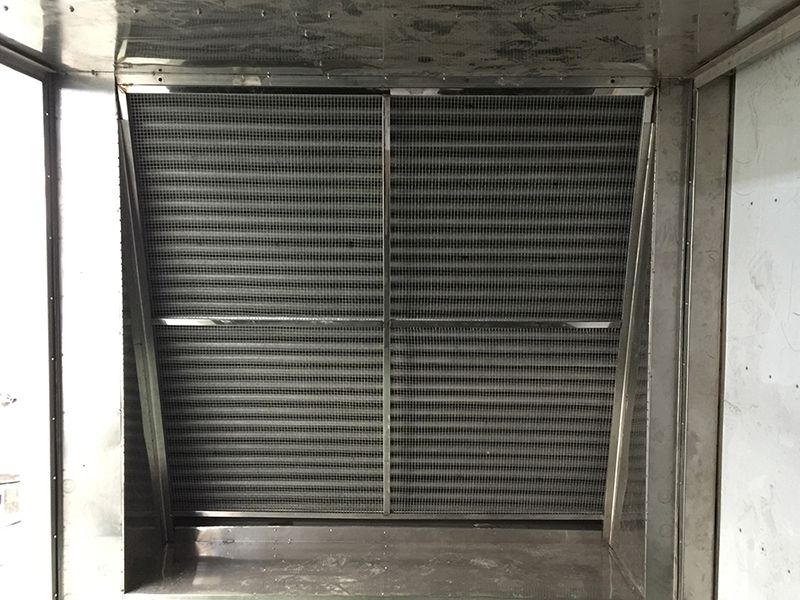

High-quality heat exchangers are used, with steel pipes, aluminum fins and a stainless steel shell, ensuring a large heat exchange area and high heat transfer efficiency. According to user requirements, direct heating can be achieved using burners.

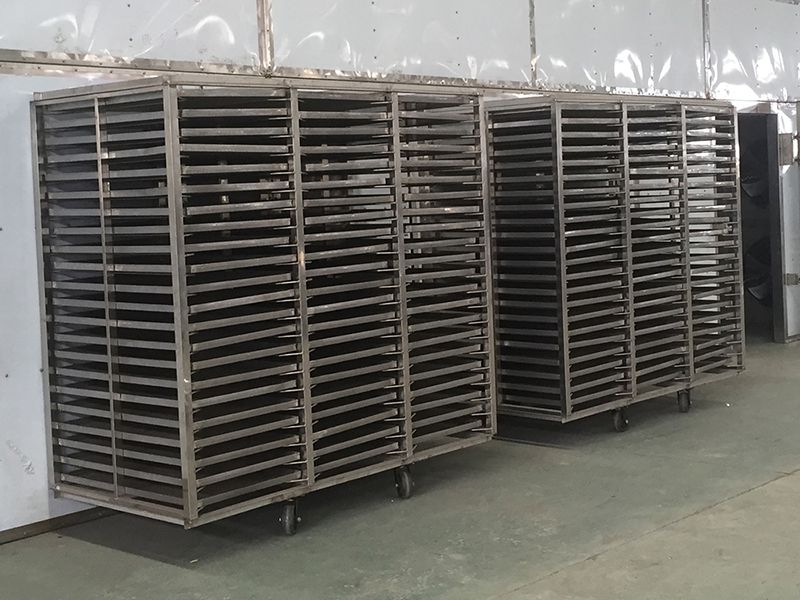

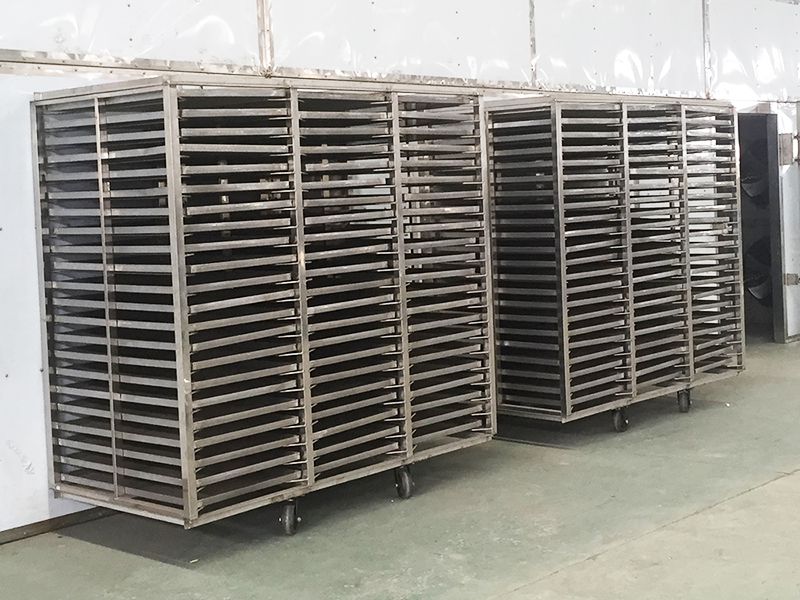

The trolleys and trays are made of stainless steel, ensuring compliance with food safety and hygiene standards. The bottom of the trolley is equipped with high-quality nylon wheels, which are wear-resistant and provide easy maneuverability.

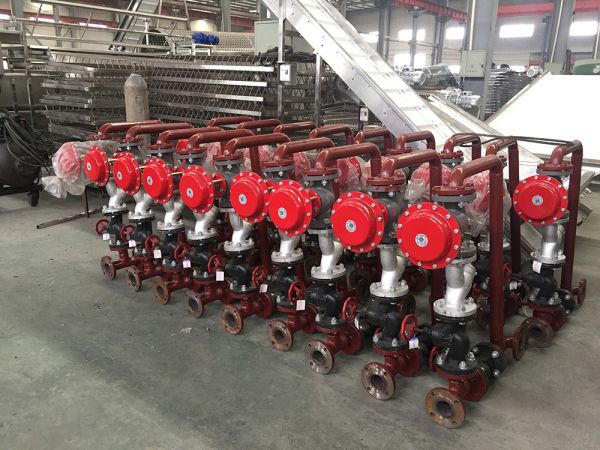

Steam is controlled using pneumatic valves to avoid the aging issue commonly seen in electromagnetic valve coils. This prolongs the dryer's lifespan and reduces maintenance costs.

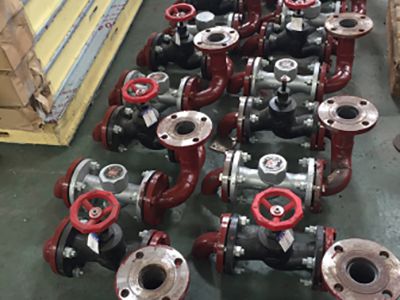

The hot air dryer uses high-quality steam trap systems for automatic drainage control, preventing water accumulation in the heat exchanger and improving its efficiency.
